Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

5 Axis Dental Milling Machine

Prices 5 Axis Dental Milling Machine

Τόπος καταγωγής:

Βομβαρδισμός

Μάρκα:

YUCERA

Αριθμό μοντέλου:

SK-5A

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Πηγή ενέργειας:
Ηλεκτρισμός
Εγγύηση:
1 έτος
Υπηρεσία μετά την πώληση:
Ηλεκτρονική τεχνική υποστήριξη
Υλικό:
Μεταλλικό, χάλυβα
Διάρκεια ζωής:
2 χρόνια
Πιστοποίηση ποιότητας:
CE
Ταξινόμηση οργάνων:
Τάξη Ι
Πρότυπο ασφάλειας:
ΔΠΧΑ
Τύπος:
5 άξονες οδοντική φρένα
Βάρος:
Μηχανή κοπής: 95kg Κύριος κινητήρας: 20kg
Στροφή του άξονα λειτουργίας:
Α: 360 ° Β: ± 30 ° CNC κατεργασία
Συνολική ισχύς:
Μηχανή άλεσης 800W
Ακρίβεια κοπής:
Μηχανή οδοντικής άξονας 0.2mm οδοντικής άξονας 5
Χωρητικότητα περιοδικού εργαλείου:
5 εργαλεία μηχανής φρεζαρίσματος
Επισημαίνω:

5 Axis Dental Milling Machine

,

Prices 5 Axis Dental Milling Machine

Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1 κομμάτι
Τιμή
$10,000-14,000 / piece
Περιγραφή του προϊόντος
Product Description



dental laboratory equipment and 5 axis dental milling machine up3d p52 dental milling machine cad cam  prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 0

Characteristics for 5 axes dental milling machine :

After 2 years of design and development, more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:

1. Horizontal processing speed can be increased by nearly 20%

2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;

3. Tool detection sensor with 2um

4.24hours online technical support
5.include hyperdent(free)

Detailed specification of 5 axis dental milling machine:
Axis  5 Axis
Cut Method  dry milling
Milling Materials zirconia block, pmma, wax, PEEK
Size of milling materials φ98, thickness(10-30mm)
 Range of rotation & tling rotation  x/y/z: 105 / 135/ 90  A:360° B:±30°
 Speed of Principal axis  0-60000rpm / 500w
 Driver  Full rotation servo motor drive
cutters 5 tools; φ4mm
size of dental 5aixs milling machine CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm
G.W: of dental 5aixs milling machine CNC machine:95kg; Host milling machine:20kg
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirement : 800W;220-230v AC,56/60 hz



Packaging & Shipping



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 2Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 4Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 6

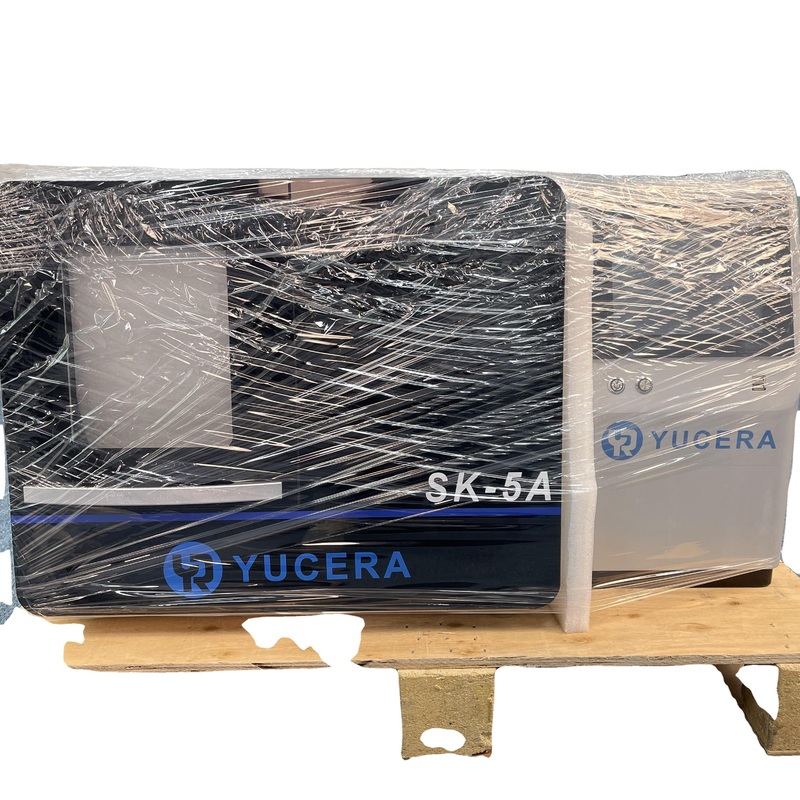

Blocks packed with carton box and polyfoam inside. Outside one more big box and waterproof membrane.

We will send out the product after 15 days from we receive the formal contract and front money.



Customer Feedback



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 8

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 10

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 12Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 14

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 16

Company Information



Located in Shenzhen's special economic zone, Shenzhen Yurucheng Dental Material Co., LTD is a comprehensive enterprise specializing in developing, manufacturing, and marketing Dental equipment and materials.

Yurucheng Cherish principles of technology innovation and people-oriented, concentrating

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 18Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 20Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 22

Exhibition



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 24



FAQ

1, Type of payment: T/T, West Union, Paypal, L/C, etc (transfer fee charge to the buyer)Others PolicySample Policy: We can offer samples for free.



2, Discount Policy: We supply discounts for bulk orders.



3, OEM Policy: We can accept OEM orders.





Shenzhen YUCERA Dental Materials Co., Ltd.
Whatsapp/Tel: +86 18123985442(Ms.Smile)
Add: 2nd Floor of Building F, No. 14 of Zhongxing Rd., Pingshan District, Shenzhen City, Guangdong Province, P.R.China
